Vancouver Round 90 LED 2

Astro

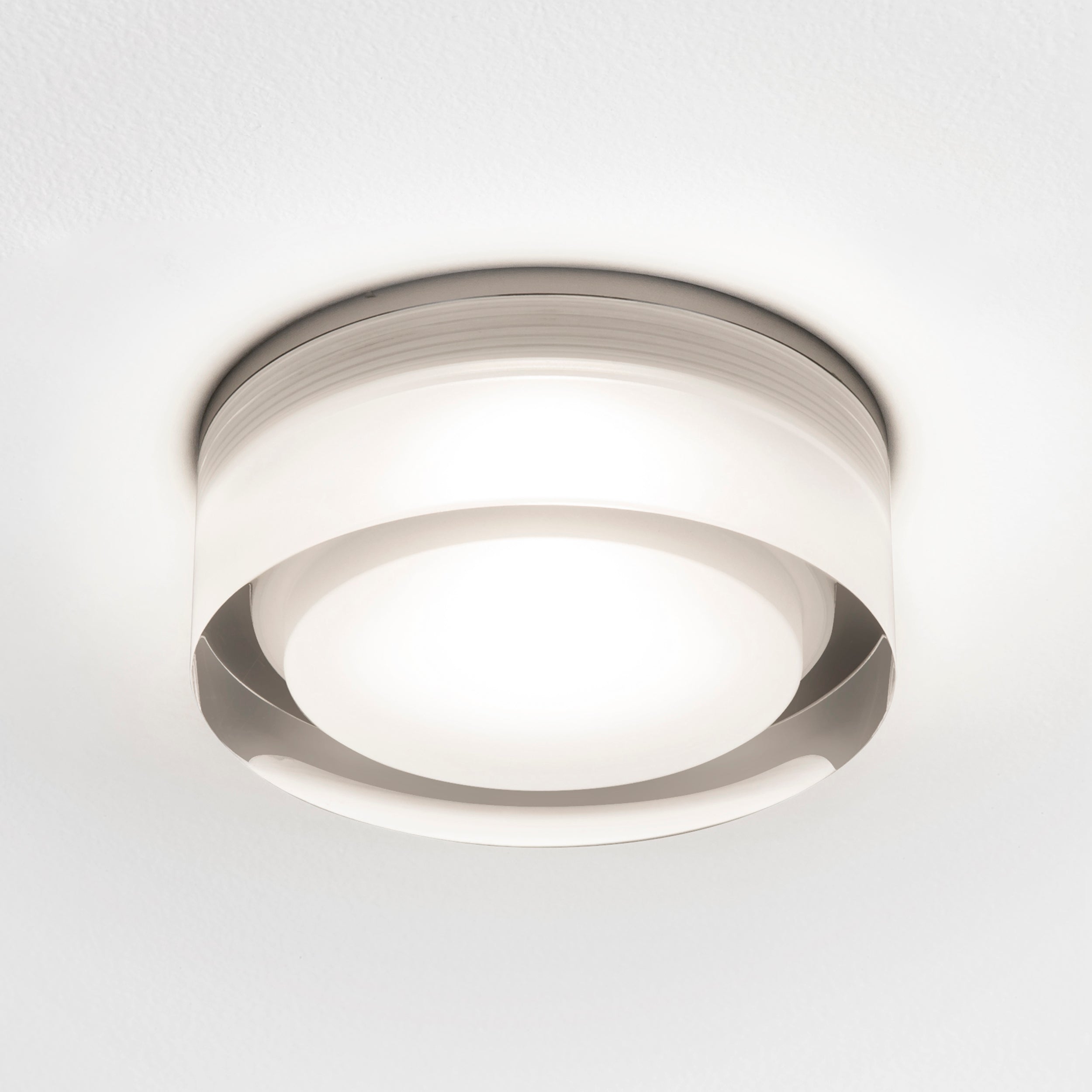

Vancouver Round 90 LED

$210.00
Shipping calculated at checkout.
Clear Acrylic 1229012
Forward voltage per product is 17V.
  • Orders over $800 ship free
  • 30 day returns

Product Information

Specification
Vancouver Round 90 LED technical drawing
Lamp Required: No
Max Lamp Type & Wattage: 1 x 6W LED
Dimmable: Yes (Control Gear Dependent)
Driver Required: Constant Current 350mA
Class: Class III - Low Voltage
Power Connection Type: Wired In
IP Rating: IP44
Bathroom Zone: Zone 2, 3
Lumen Output (LM): 680.9
Colour Temperature (K): 3000
CRI: 80
Cutout Shape: Round
Recess Depth (mm): 86
Hole Saw Diameter: 79mm / 3-1/8in
Type Of Dimmer: Control Gear Dependent
Installation Orientation: Install after plastering
