Minima Round LED
Minima Round LED
Minima Round LED 2

Astro

Minima Round LED

$140.00
Shipping calculated at checkout.
Textured White 1249005
Forward voltage per product is 9.67V.
  • Orders over $800 ship free
  • 30 day returns

Product Information

Specification

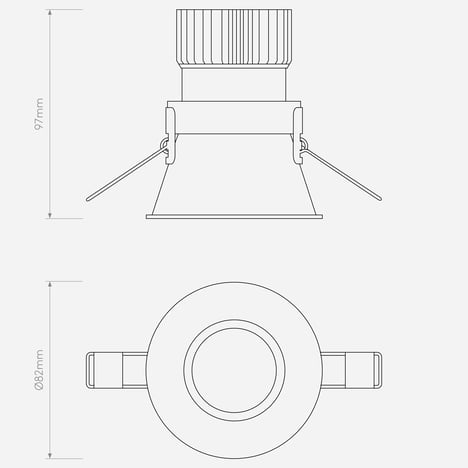

Minima Round LED technical drawing
Lamp Required: No
Max Lamp Type & Wattage: 1 x 6.8W LED
Dimmable: Yes (Control Gear Dependent)
Driver Required: Constant Current 700mA
Class: Class III - Low Voltage
Power Connection Type: Wired In
IP Rating: IP20
Bathroom Zone: Zone 3
Lumen Output (LM): 434.2
Colour Temperature (K): 2700
CRI: 80
Cutout Shape: Round
Recess Depth (mm): 150
Hole Saw Diameter: 76mm / 3in
Type Of Dimmer: Control Gear Dependent
Beam Angle (°): 38.1
Installation Orientation: Install after plastering
